Zanzibar

The revolutionary technique used for Zanzibar is the perfect combination of art and hydraulic engineering.

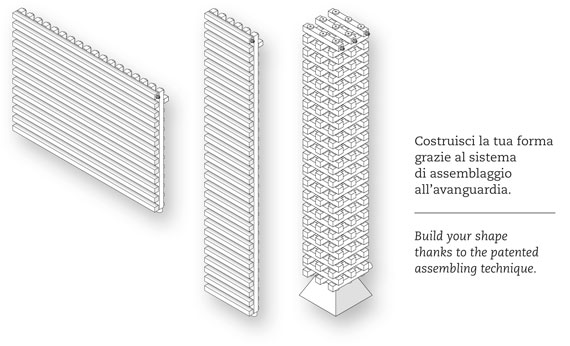

Its own patented system allows the heat to pass through the pipes to create a compact radiator without any welding.

The geometric aspect is balanced and gives extensive versatility to dimensions. This design so flexible will fit easily in your space.

CODE	HEIGHT	WIDTH	DEPTH	OUTPUT	WEIGHT
	mm	mm	mm	Watts@∆t 50k	kg

ZLD-52-52	520	525	105	388	14
ZLD-52-82	520	825	105	620	20
ZLD-52-102	520	1025	105	770	24
ZLD-52-117	520	11705	105	878	28
ZLD-52-147	520	1475	105	1108	35
ZLD-52-172	520	1725	105	1296	41

ZLD-62-52	620	525	105	460	15
ZLD-62-82	620	825	105	735	23
ZLD-62-102	620	1025	105	907	30
ZLD-62-117	620	1175	105	1051	34
ZLD-62-147	620	1475	105	1324	42
ZLD-62-172	620	1725	105	1540	49

ZLD-152-27	1500	275	105	590	19
ZLD-152-37	1500	375	105	820	26
ZLD-152-47	1500	475	105	1038	33
ZLD-152-52	1500	525	105	1152	37
ZLD-152-57	1500	575	105	1252	40

ZLD-182-27	1800	275	105	720	23
ZLD-182-37	1800	375	105	980	31
ZLD-182-47	1800	475	105	1238	40
ZLD-182-52	1800	525	105	1368	44
ZLD-182-57	1800	575	105	1498	48

ZLD-202-27	2000	275	105	792	25
ZLD-202-37	2000	375	105	1080	34
ZLD-202-47	2000	475	105	1368	44
ZLD-202-52	2000	525	105	1512	48
ZLD-202-57	2000	575	105	1656	53

ZTR-125	1250	190	190	665	35
ZTR-180	1790	190	190	980	47

Each radiator is customizable by the customer choosing the wide range of RAL colours available.

* Chrome finish reduces radiator output by about 20%
