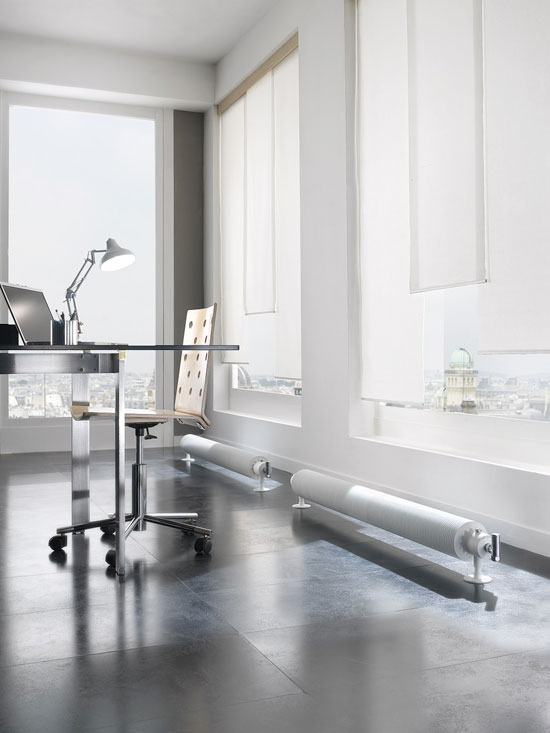

Created to be a furnishing element which recalls the industrial design, Hot Form presents, with its functional linear fins, a product especially suitable for lofts, galleries or offices.
Its design fuses an impeccable advanced technology with functionality to warm any environment.
![](https://hotwave.it/wp-content/uploads/2014/04/flow-form-radiator-hotwave.jpg)
CODE | HEIGHT | WIDTH | DIAMETER | OUTPUT | WEIGHT |
---|---|---|---|---|---|
mm | mm | mm | Watts@∆t 50k | kg | |
HF-100 | 130 | 1000 | 88 | 269 | 12 |
HF-150 | 130 | 1500 | 88 | 413 | 18 |
HF-200 | 130 | 2000 | 88 | 557 | 24 |
XHF-100 | 190 | 1000 | 133 | 401 | 13 |
XHF-150 | 190 | 1500 | 133 | 616 | 20 |
XHF-200 | 190 | 2000 | 133 | 831 | 26 |
XXHF-100 | 250 | 1000 | 187 | 993 | 18 |
XXHF-150 | 250 | 1500 | 187 | 1490 | 27 |
XXHF-200 | 250 | 2000 | 187 | 1969 | 36 |
ELECTRIC | |||||
HFE-100 | 180 | 1015 | 122 | 500 | 24 |
HFE-150 | 180 | 1515 | 122 | 750 | 36 |
HFE-200 | 180 | 2015 | 122 | 1000 | 48 |
VERTICAL | |||||
HFV-150 | 1500 | 255 | 155 | 865 | 26 |
HFV-180 | 1800 | 255 | 155 | 1040 | 31 |
HFV-200 | 2000 | 255 | 155 | 1153 | 35 |
VERTICAL-ELECTRIC | |||||
HFE/V-150 | 1500 | 255 | 155 | 600 | 37 |
HFE/V-180 | 1800 | 255 | 155 | 900 | 44 |
HFE/V-200 | 2000 | 255 | 155 | 1200 | 49 |
Hot Form Horizontal Electric instructions
Hot Form Vertical Electric instructions
Hot Form Horizontal instructions
Hot Form Vertical instructions
![](https://hotwave.it/wp-content/uploads/2014/03/finiture_hotwave.png)
Each radiator is customizable by the customer choosing the wide range of RAL colours available.
